Baggage check-in

MATREX designs and manufactures check-in conveyors which allow for an effective, fast and smooth baggage check-in.

In fact, they can be perfectly adapted to airline companies' needs and airport constraints.
They ensure passenger and airport staff comfort.

MATREX equipment allows for weighing, labelling and baggage injection, by using one, two or three belts.

Advantages:

  • Fast and effective baggage handling
  • Conception (stainless steel) and coherence with interior airport design
  • Easy-to-use check-in conveyors
  • Optimised design of check-in areas
  • Easy-to-maintain (conveyors on castors, fast belt replacement…)
baggage check-in

baggage check-in

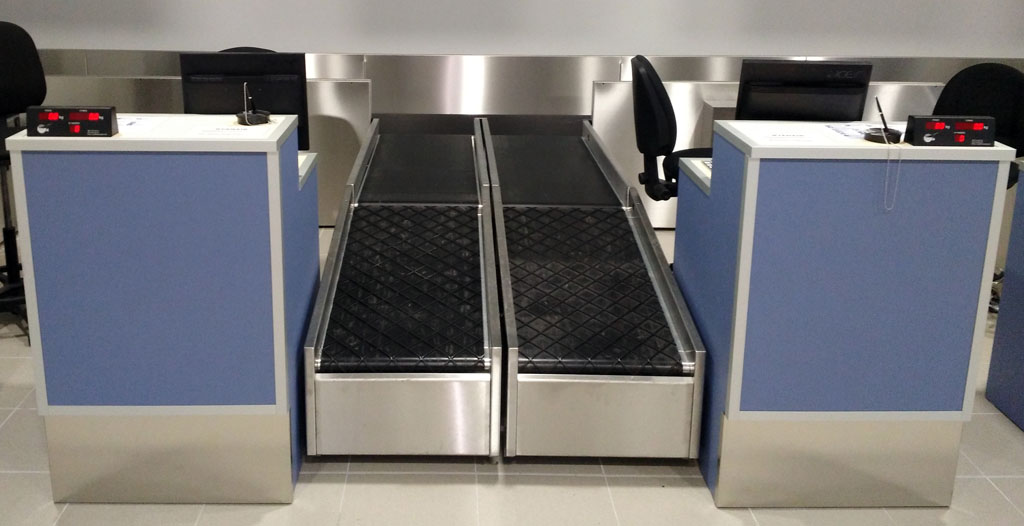

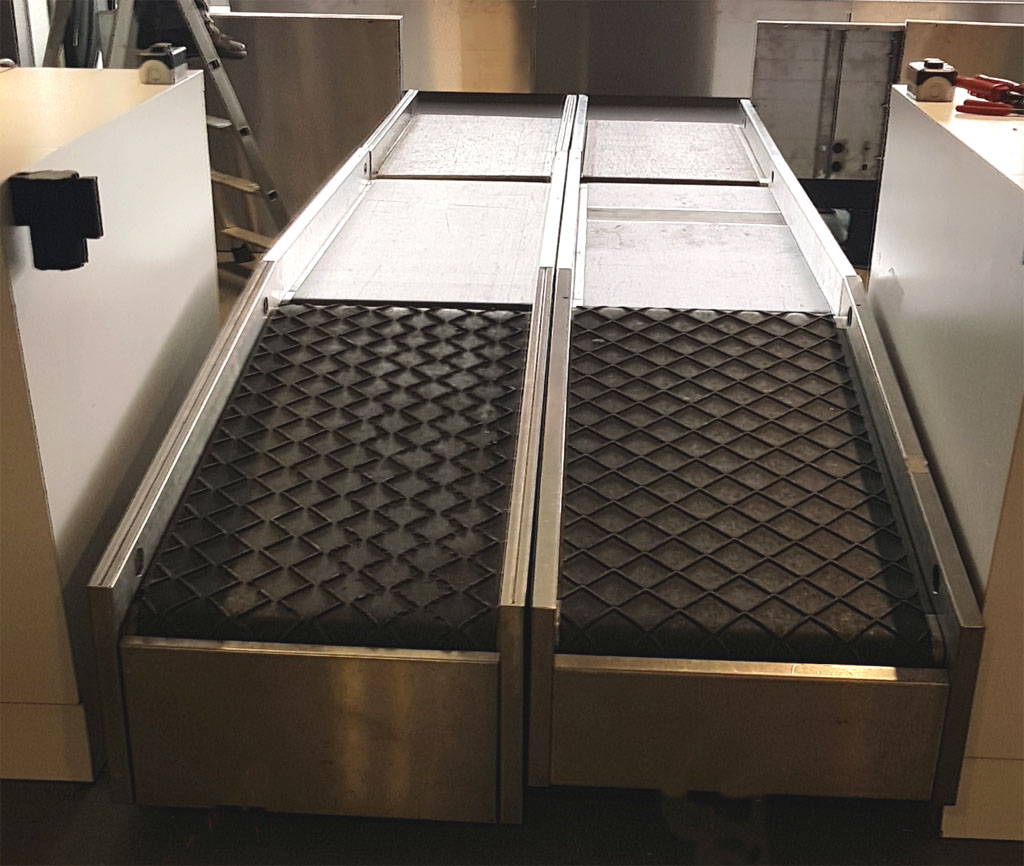

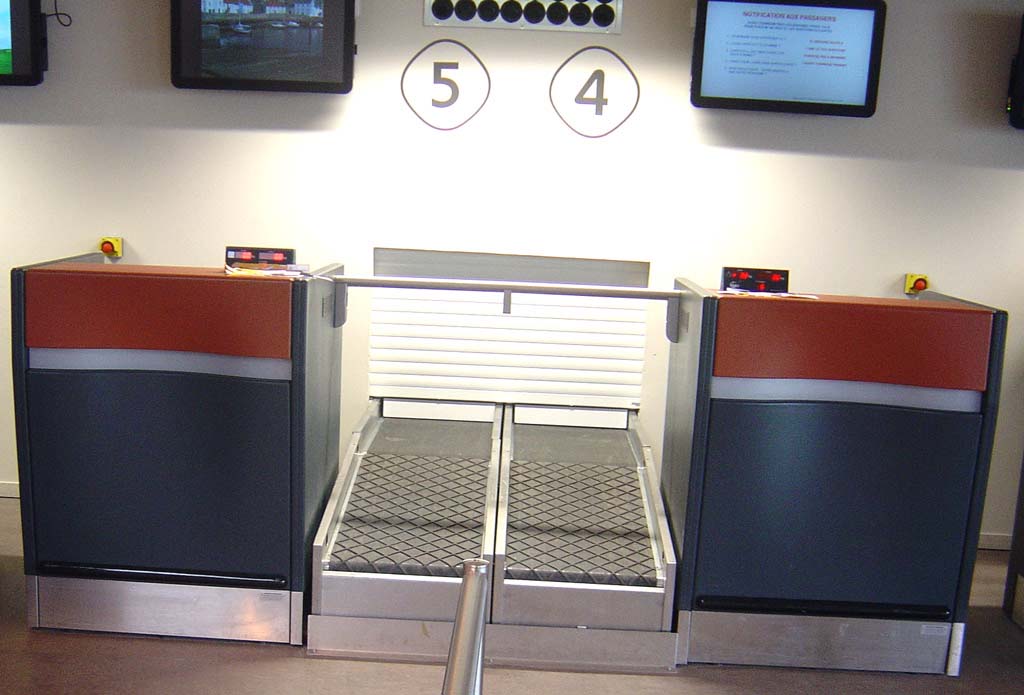

Standard baggage check-in conveyor

Standard baggage check-in conveyors enable the check-in of IATA standard size baggage :

  • Simple with 1, 2 or 3 belts
  • Double with 1, 2 or 3 belts
    (check-in conveyors are set up side-by-side)

They are equipped with different types of belts depending on their function:

  • Weighing function: heat-treated black grid belt
  • Labelling and/or injection function:
    gripping belt (on inclined conveyors)
    or smooth belt (on horizontal conveyor)

Included accessories:

  • 1 sensor (baggage detection)
  • Sensor connecting box
  • Double-face baggage weight display

Standard baggage check-in conveyor



1 belt

2 belts

3 belts

Length (mm)

2 600

2 260

3 390

Width overall
For belt of 510 (mm)

600

-

-

Width overall
For belt of 610 (mm)

700

-

-

Baggage drop-off height (mm)

320

-

-

Injection height (mm)

500

-

-

Speed (m/min)

33

-

-

Design

Front and side stainless steel panels

baggage check-in

Conveyor

baggage check-in

Check-in

baggage check-in

Baggage

baggage check-in

Conveyor of standard baggage

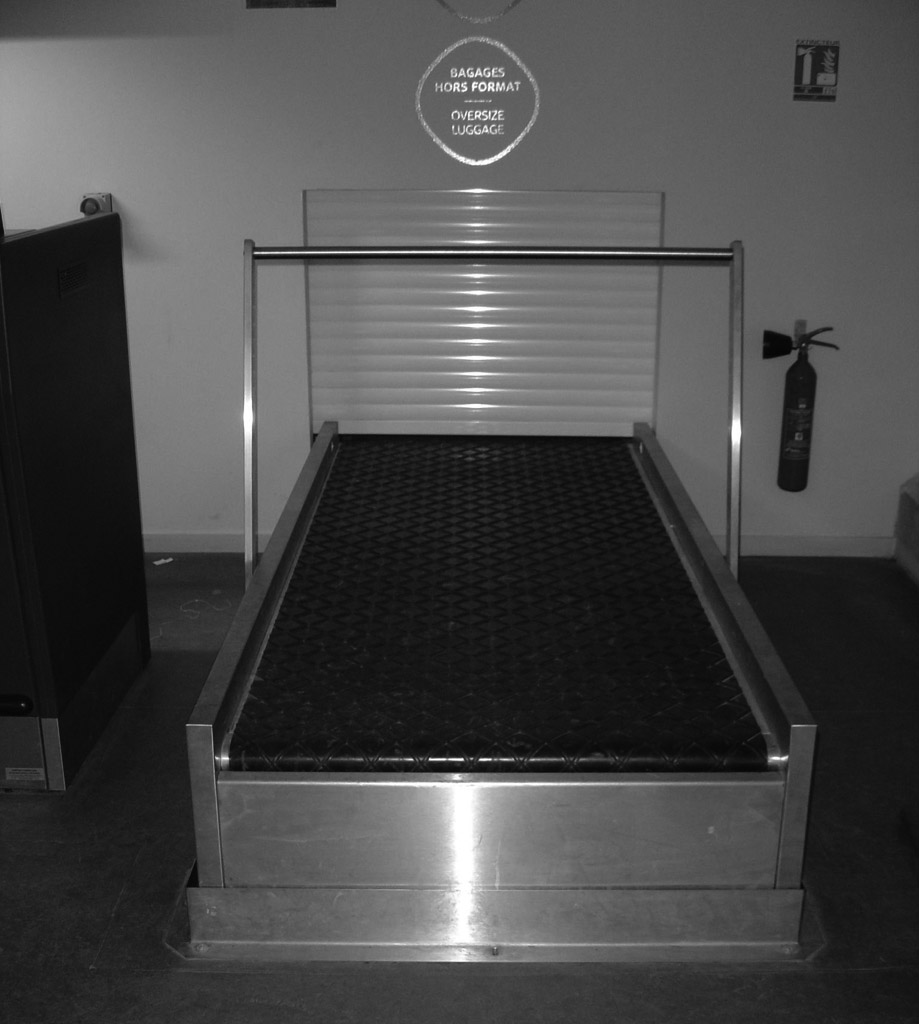

Odd-size baggage check-in conveyor

Baggage which by dimension and/or weight exceeds IATA standard baggage limits must be separately handled by specialised and adapted conveyors.

Our odd-size baggage check-in conveyors are equipped with smooth belt. However, MATREX can adapt its products (dimensions, belt…) to customer needs and constraints.

Included accessories:

  • 4 sensors (baggage detection)
  • Sensor connecting box
  • Double-face baggage weight display

Odd-size baggage check-in conveyor



1 belt

2 belts

3 belts

Length (mm)

2 600

2 260

3 390

Width overall
For belt of 510 (mm)

1 210

-

-

Width overall
For belt of 610 (mm)

1 410

-

-

Baggage drop-off height (mm)

320

-

-

Injection height (mm)

500

-

-

Speed (m/min)

33

-

-

Design

Front and side stainless steel panels

baggage check-in

Conveyor of odd-size baggage

baggage check-in

Odd-size conveyor

Special baggage

Baggage items with dimensions exceeding oversize baggage allowances should be transported as quickly as possible to the freight area. MATREX also manufactures conveyors for this very specific type of bag.
